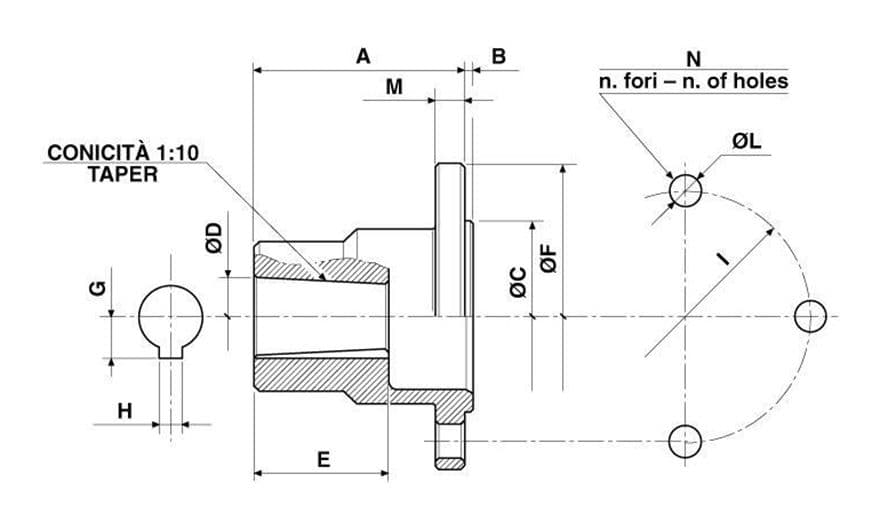

Standard coupling flange (made of stainless steel with antioxidant surface treatment)
- Couplings made of stainless steel Aisi 304 and different special versions also available.
| COD. | A | B | C | D | E | F | G | H | I | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 31800900 | 56 | 3 | 45 | 20 | 43 | 90 | 11 | 6 | 69,5 | 8,5 | 9 | 4 |
| 318001000 | 68 | 3 | 63,5 | 25 | 45 | 102 | 13,5 | 6 | 82,5 | 10,5 | 10 | 4 |
| 318001100 | 70 | 3 | 63,5 | 30 | 45 | 102 | 16,5 | 8 | 82,5 | 10,5 | 10 | 4 |
| 318001200 | 80 | 3 | 63,5 | 35 | 50 | 127 | 19,5 | 10 | 107,95 | 11,5 | 10 | 4 |
| 31807500 | 80 | 3 | 63,5 | 35 | 50 | 102 | 19,5 | 10 | 82,5 | 10,5 | 10 | 4 |
| 31801300 | 80 | 3 | 63,5 | 40 | 50 | 127 | 22 | 12 | 107,95 | 11,5 | 10 | 4 |
| 31801400 | 95 | 3 | 76 | 45 | 60 | 146 | 25 | 14 | 120,65 | 13 | 12 | 8 |
| 31801500 | 95 | 3 | 76 | 50 | 60 | 146 | 28 | 14 | 120,66 | 13 | 12 | 8 |
| 31800000 | 120 | - | - | 55 | 75 | - | 31 | 16 | - | - | - | - |
| 31800000 | 120 | - | - | 60 | 75 | - | 34 | 16 | - | - | - | - |
