Thrust bearing ”beam type”

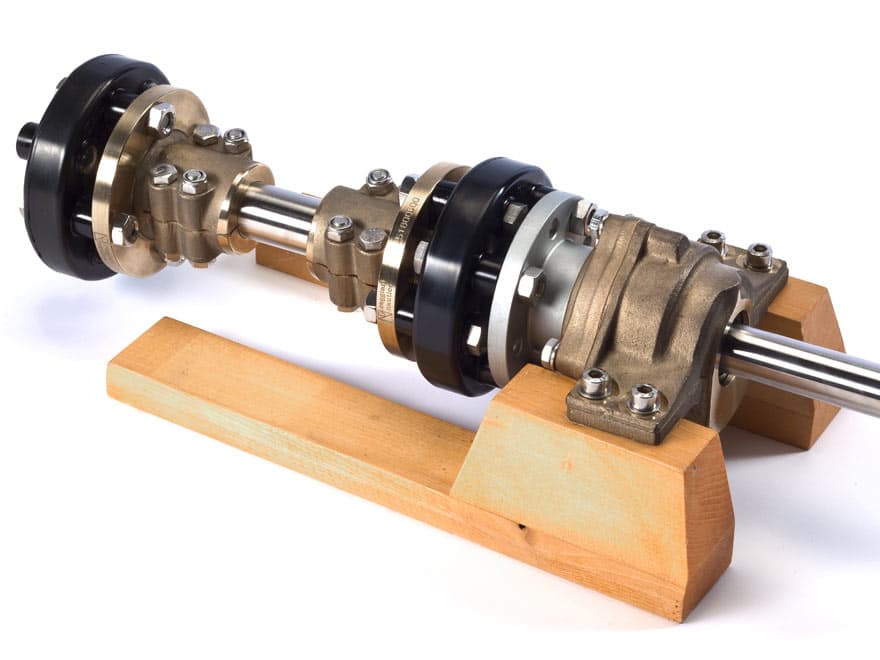

- The input can be directly coupled with our flexible coupling FC type.

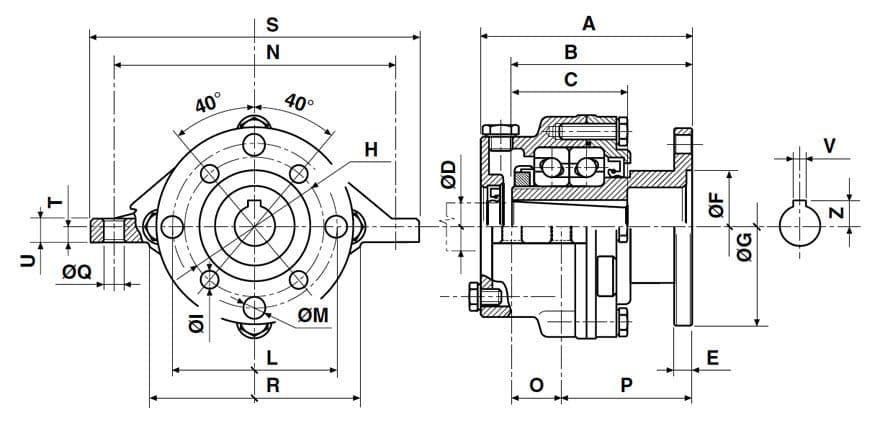

| COD. | A | B | C | D | E | F | G | H | I | L | M | N | O | P | Q | R | S | T | U | V | Z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TB 25.001 | 107 | 91 | 58 | 25 | 9 | 57,15 | 102 | 69,85 | 8,5 | 82,5 | 10 | 140 | 25 | 66 | 8,5 | 105 | 165 | 8 | 12 | 6 | 13,5 |
| TB 30.001 | 115 | 100 | 75 | 30 | 10 | 60,40 | 102 | 79,37 | 10,5 | 82,5 | 10 | 145 | 25 | 72 | 8,5 | 110 | 170 | 8 | 12 | 6 | 13,5 |
